Part Number
SMG1225D
Bandwidth(MHz)40-1200
Gain(dB)25.5±0.5
Slope(dB)1.0~2.0
Flatness(dB)±0.5
Return Losses
Input S11:-16
Output S22:-16
Distortion Index
CTB:-66
Xmod:-62
CSO:-65
Noise Figure(dB)5
Voltage(V)24
Current(mA)420-460
Conditions

99路信号平坦输出

CTB的测试频率为543.25MHz

CSO的测试频率为544.5MHz

99channels flat

Vo=42dBmV measured at 543.25MHz for CTB

544.6MHz for CSO

Vo=42dBmV




SMG1225D

SMG1225D

SMG1225D

SMG1225D

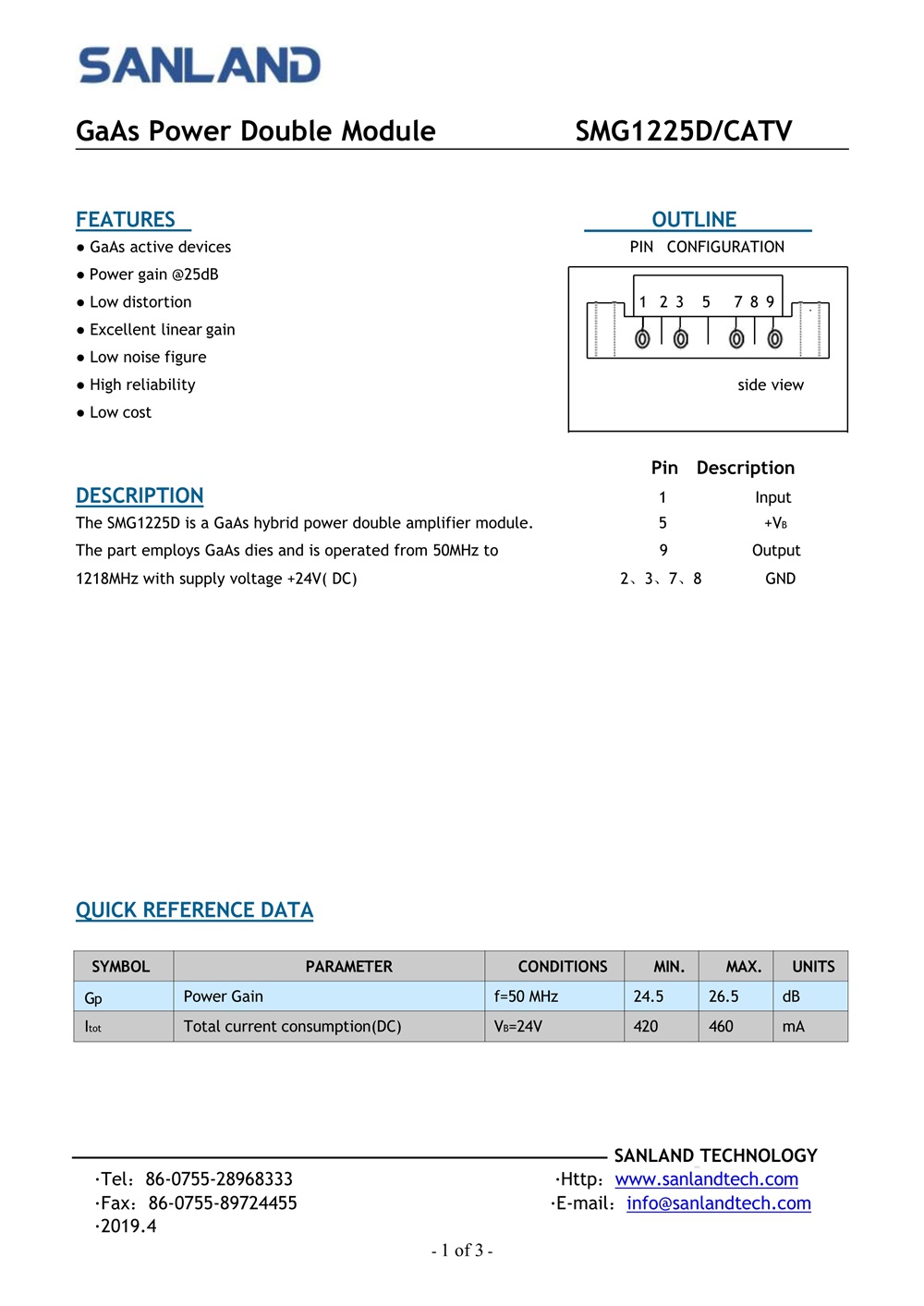

SMG1225DSMG1225D.pdf
