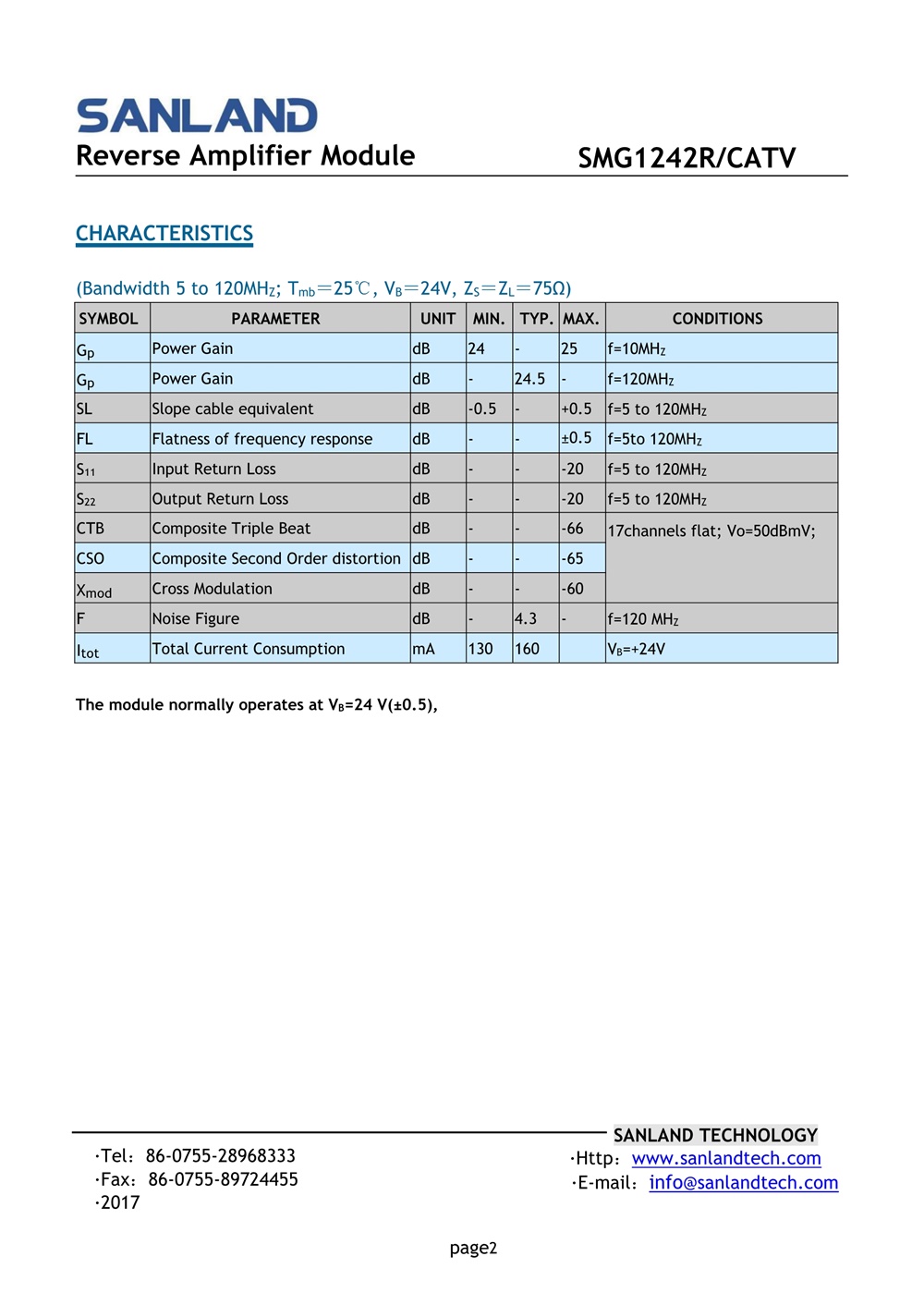

Part Number
SMG1242R
Bandwidth(MHz)5-120
Gain(dB)24±0.5
Slope(dB)-0.2-0.5
Flatness(dB)±0.5
Return Losses
Input   S11:-18
Output S22:-18
Distortion Index
CTB:-70
Xmod:-62
CSO:-63
Noise Figure(dB)4.5
Voltage(V)24V
Current(mA)150
Conditions

17路平坦输出,Vo=50dBmV,测试频率77.25

17 channels flatness; Vo=50dBmV;

CTB measured at 77.25 MHz;

CSO measured at 78.5 MHz;



SMG1242R

SMG1242R

SMG1242R

SMG1242R

SMG1242RSMG1242R.pdf
