Part Number
SMG1030DM
Bandwidth(MHz)40-1000
Gain(dB)25.5±0.5
Slope(dB)1.0~2.5
Flatness(dB)±0.5
Return Losses
Input    S11：-16
Output S22：-16
Distortion Index
CTB：-62
Xmod：-60
CSO：-62
Noise Figure(dB)5
Voltage(V)24
Current(mA)350-380
Conditions

59路PAL制式+QAM

平坦输出

测试频率743.25MHz

59Ch.PAL+QAM,with -6dB offset,titled 13dB across the band, measured at 743.25MHz

Vo=50dBmV


SMG1030DM

SMG1030DM

SMG1030DM

SMG1030DM

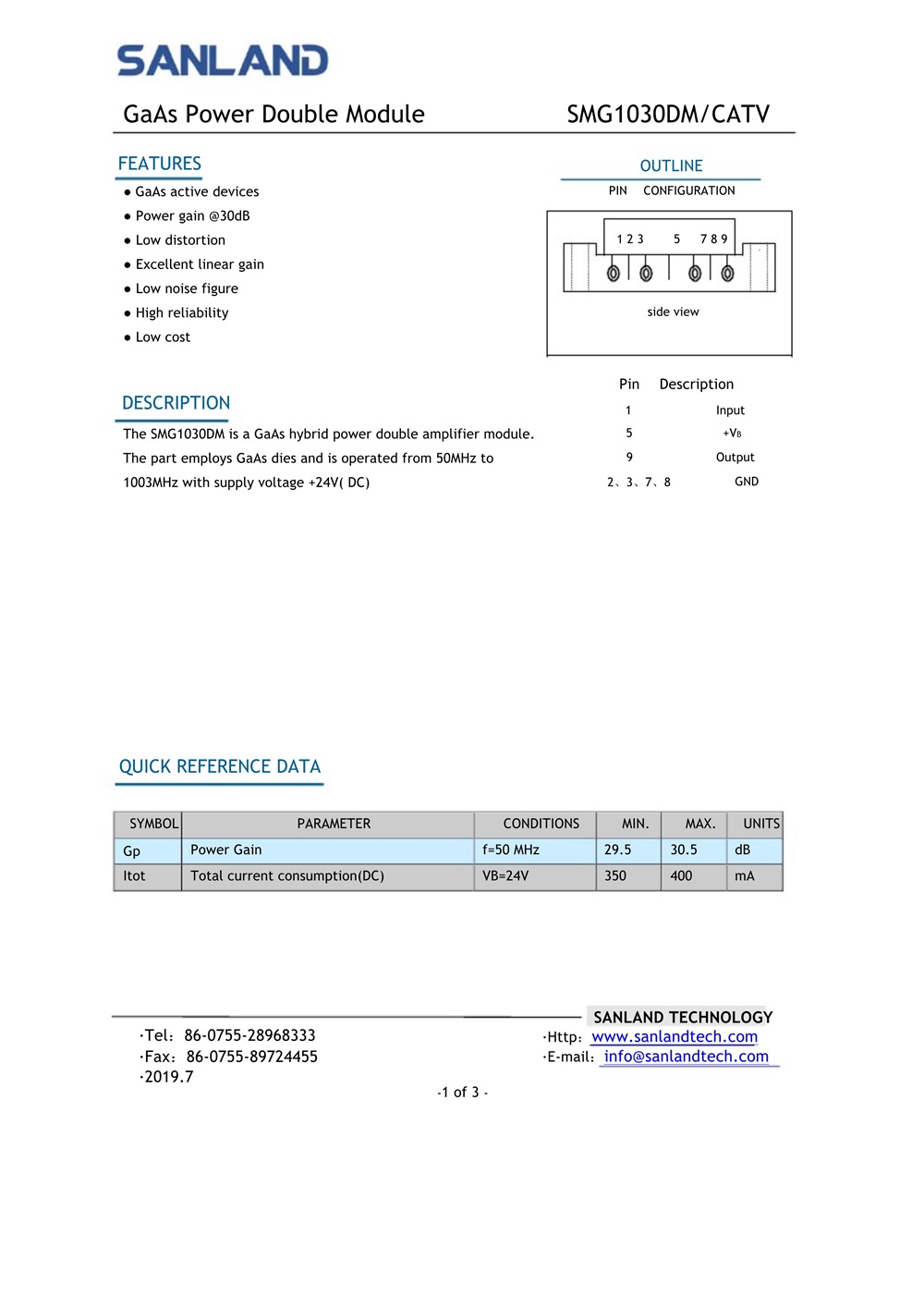

SMG1030DM.pdf
