关键性能
| ● Designed for transmit CATV+ SAT-IF signal, frequency range 47~2400 MHz |
| ● RF input port offers 12 V or 13/18 V voltage and 0/22 kHz signal (two dial switches are used for selecting 13/18 V and 0/22 kHz signal), MAX current 500 mA. |
| ● Excellent Linearity and flatness |
| ● Single-mode fiber high return loss |
| ● Using GaAs amplifier active devices |
| ● Ultra low noise technology |
| ● Smaller size and easier install |
| ● Red-LED for power supply indication |

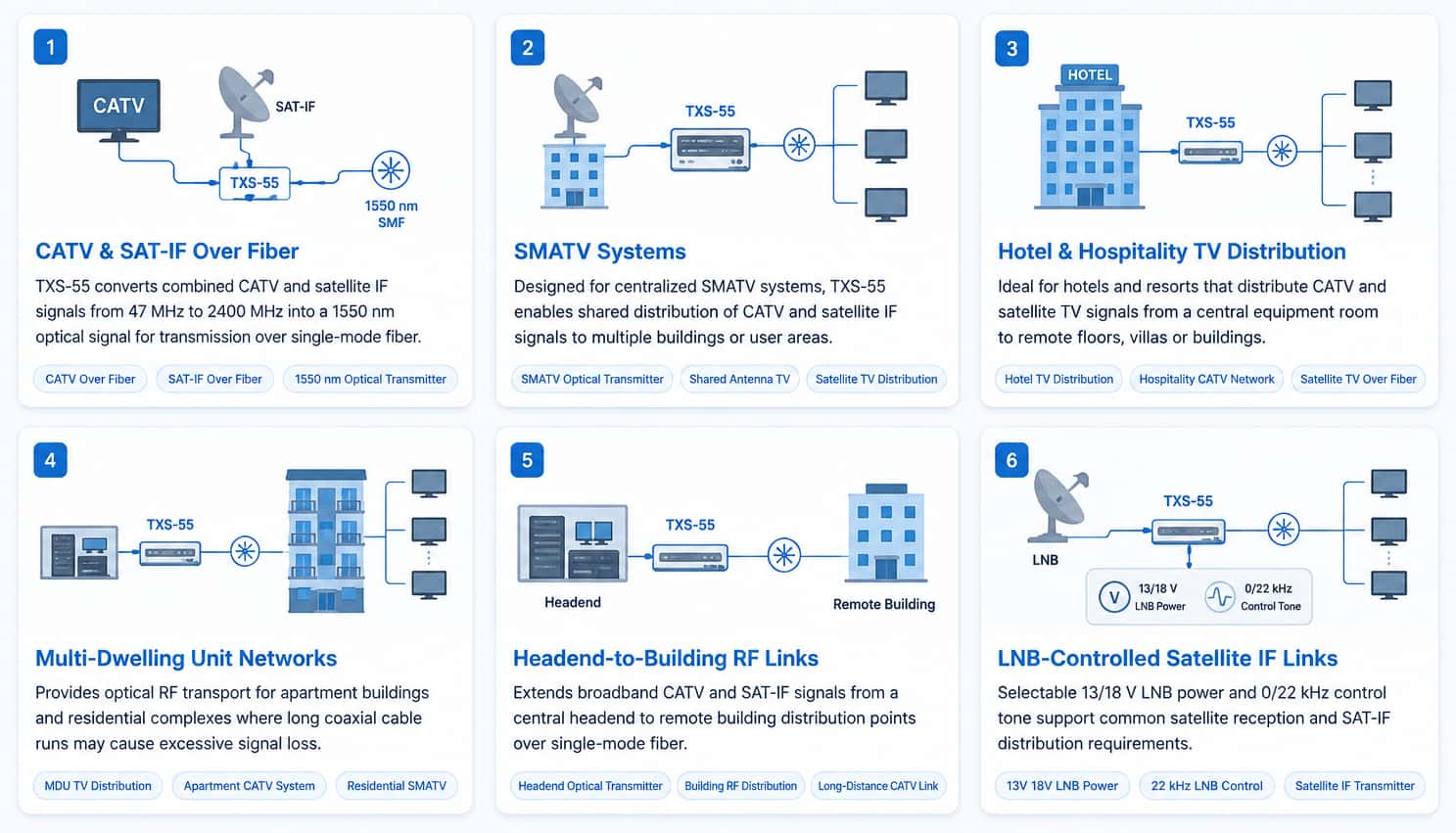

This device is a high-performance fiber optic transmission equipment designed for CATV and satellite intermediate frequency (SAT-IF) signal transmission. It supports a broad frequency range of 47–2400 MHz, combining excellent linearity, low noise, and a compact structure, making it suitable for various RF signal transmission applications.
| ITEM | DESCRIPTION |
| RF Connector | F-female |
| Optical Connector | SC/APC or FC/APC |
| Power Supply | F-female |
| Optical Return Loss |
≥45 dB |
| Optical Fiber Type | Single Mode |
| Frequency Range | 47-2400 MHz |
| CTB | ≥63 dB |
| CNR | ≥52 dB |
| CSO | ≥60 dB |
| Return Loss | ≥14dB |
| Flatness | ±2dB |
| Input Impedance | 75Ω |
| Power Supply | 12 VDC 1A |
| 12V or 13/18V DC | 500 mA |
| Power Consumption | <4 W |
| Dimensions | 130*97*32 mm |
