Micro CATV + SAT-IF Fiber Optic Transmitter, 47–2400 MHz | SLRF TXS-55

关键性能 ● Designed for transmit CATV+ SAT-IF signal, frequency range 47~2400 MHz ● RF input port offers 12 V or 13/18 V voltage and 0/22 kHz signal (two dial switches are used for selecting 13/18 V and 0/22 kHz signal), MAX current 500 mA. ● Excellent Linearity and flatness ● Single-mode fiber high return loss ● Using GaAs amplifier active devices ● Ultra low noise technology ● Smaller size and easier install ● Red-LED for power supply indication

Hot Tags : 47–2400 MHz CATV optical transmitter wideband CATV optical transmitter CATV and SAT-IF optical transmitter low noise CATV optical transmitter CATV optical transmitter for satellite TV RF over fiber CATV optical transmitter
Read More

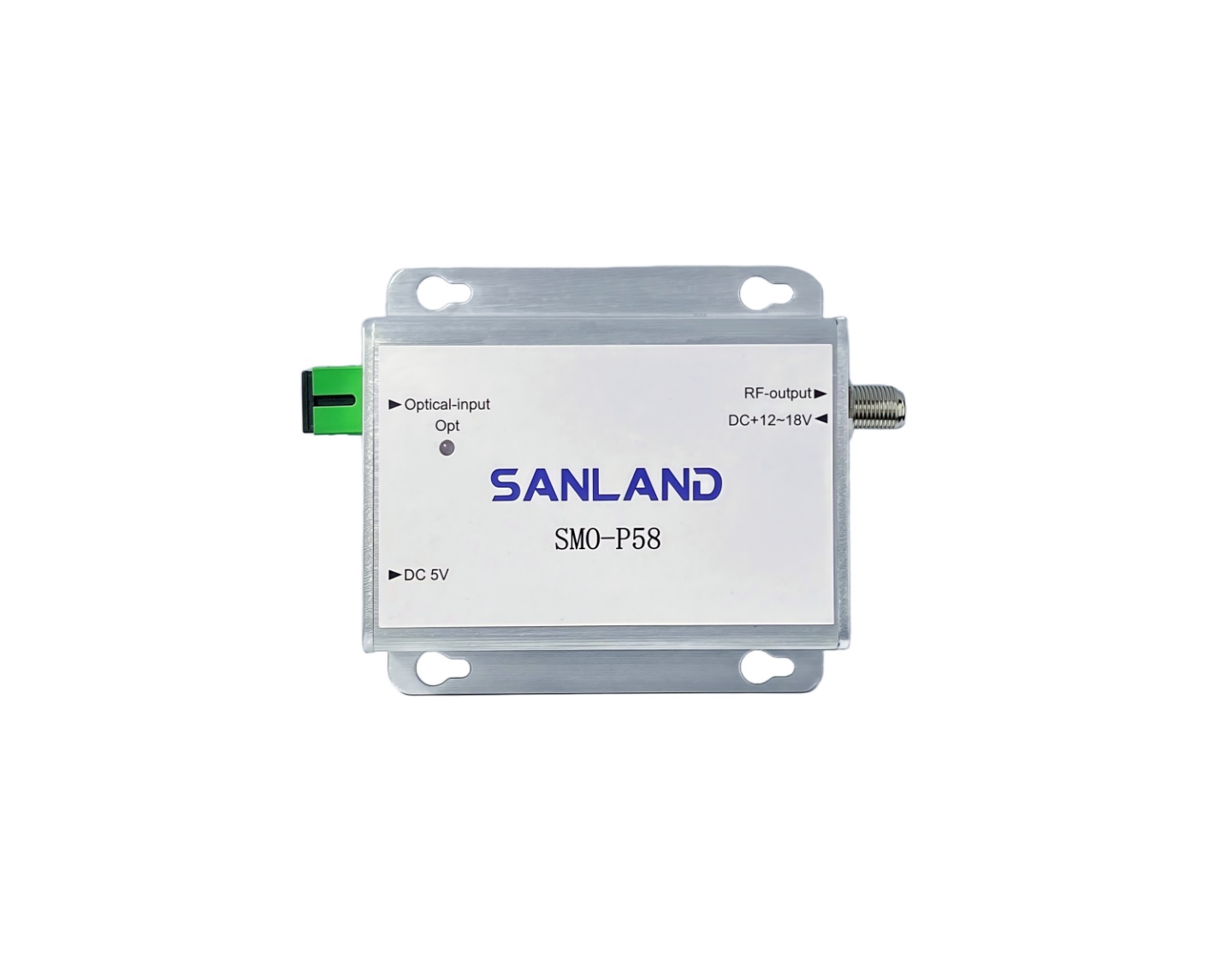

SMO-P58 70–2600MHz AGC Optical Receiver for FTTH

关键性能 ● AGC ● Output 84~88dBuV ability ● Excellent flatness ● Low consumption ● Surge suppression design ● Input optical power monitoring LED ● 75Ω F-type connector

Hot Tags : 1550nm Optical Receiver for CATV Networks AGC FTTH Optical Node (−12 to −2 dBm Input) Fiber to the Home CATV Receiver Satellite IF + CATV Broadband Optical Receiver Compact Optical Receiver for Community Networks Stable Output Optical Node for FTTH
Read More
FSK-OP101 2681MHz In-building Optical Receiver

关键性能 ● Supports 4K/8K Satellite Broadcasting ● RF High Output ● Optical Input Level Indicator ● Supports Various Operations

Hot Tags : Ftth CATV Optical Receiver Catv Ftth Fiber Optic Mini Node Supports 4K/8K satellite broadcasting Optical Receiver Compatible CATV/UHF • BS • CS In-building Optical Receiver FSK Optical Receiver ONU Optical Node
Read More
SMO-P29/CATV Optical Receiver

关键性能 ● Excellent Linearity ● Extremely Low Noise ● Excellent Flatness ● PWDM ● AGC

Hot Tags : RF CATV mini optical receiver gpon onu RFoG mini node Mini Optical Receiver CATV G-PON XGS-PON CATV Ftth Wdm Node
Read More
SMO-P28/CATV Optical Receiver

关键性能 ● Excellent Linearity ● Extremely Low Noise ● Excellent Flatness ● AGC ● 1550nm Filter Optional

Hot Tags : FTTH Optical Module Forward Amplifier Module Mini Optical Receiver gpon onu CATV G-PON XGS-PON pwdm
Read More
SMO-P27/CATV Optical Receiver

关键性能 ● Excellent Linearity ● Extremely Low Noise ● Excellent Flatness ● AGC ● 1550nm Filter Optional

Hot Tags : CATV Ftth Wdm Node Mini Optical Receiver Optical Node Mini Small Home Optical Node CATV G-PON XGS-PON gpon onu
Read More
SMO-P26/CATV Optical Receiver Module

关键性能 ● Excellent Linearity ● Extremely Low Noise ● Excellent Flatness ● PWDM ● AGC

Hot Tags : Optical Node CATV Mini CATV Node CATV Optical Receiver Module pwdm CATV G-PON XGS-PON Small Home Optical Node
Read More
SMO-P25/CATV Optical Receiver Module

关键性能 ● Excellent Linearity ● Extremely low noise ● Excellent flatness ● PWDM ● AGC

Hot Tags : CATV RF Optical Fiber Reciever CATV Transmitter Receiver Optical Amplifiers Mini Optical Node CATV G-PON XGS-PON pwdm
Read More
SDU R-ONU Mini Node

关键性能 ● Forward reception is1200-1600nm. Reverse emission wavelength is 1310nm ● Forward receiving optical power range: -6dBm to +2dBm ● Forward RF bandwidth is 54-1002MHz, the output level is 25dBmV ● Light power of reverse emission is 1MW or 2MW ● Reverse RF bandwidth is 5-42MHz, and the input level is 25dBmv ● - 20dB RF output monitoring ports in the up and down lines ● Low power consumption design, especially for the whole machine ● Adopting aluminum die-casting shell. Small size and exquisite. Good heat dissipation.

Hot Tags : R-ONU Mini Node R-ONU Optical Node CATV G-PON XGS-PON Optical Network Unit ONU Optical Node ONU Optical Network Terminal
Read More
SMO-P16 Optical Receiver

关键性能 ● CATV 1GHz RF frequency bandwidth ● Integrated WDM for GPON OLT wavelength bypass ( 1490 / 1310nm ) ● Automatic gain control ( AGC ) of RF output level ● Compact integrated mechanical housing ● Module design and Plug & Play function ● DC power on indication LED ● AC / DC 12V power adaptor ( standard )

Hot Tags : 1GHz CATV Optical Receiver CATV Amplifier GaAs CATV Module Optical Network Unit pwdm CATV G-PON XGS-PON
Read More
Mini V-ONU F01/CATV Optical Receiver

关键性能 Bandwidth 47-1000MHz AGC -15 to -5dBm Input 5VDC RF output level 72 dBµV Flatness ± 1.0dB Output Return Loss (S22) ≦-14dB CNR >43dB CSO -58dBc CTB -58dBc

Hot Tags : Optical Receiver Mini Receiver Catv Ftth Agc Optical Receiver CATV G-PON XGS-PON Optical Network Unit ONU Optical Network Terminal
Read More
