This XGSPON SFP+ ONU module is a compact, hot-pluggable solution for upgrading Ethernet uplinks to 10G XGSPON. It integrates both PON and Ethernet MAC, requiring no external ONU and supporting single-fiber SC/APC connectivity.
Fully compliant with SFP MSA and ITU-T G.9807 standards, it supports 10GBASE-KR or 1000BASE-X on the host side, offers built-in diagnostics, and enables advanced features such as 1588v2 time sync, Dying Gasp reporting, and remote firmware upgrades—ideal for FTTx and enterprise applications.
| Parameter | Description |
| Type | XGSPON SFP ONU |
| Uplink | XGSPON |
| Downlink | 10GBASE-KR or 1000BASE-X (via golden finger) |
| Optical Connector | SC/APC, single fiber bi-directional |
| Transmitter | 1270nm DFB, burst mode |
| Receiver | 1577nm APD, continuous mode |
| Data Rate | 9.9532Gbps upstream / 9.9532Gbps downstream |
| FEC | Supported (Upstream & Downstream) |
| Security | AES-128 encryption with key switching |
| Power Supply | Single 3.3V ±5% |
| Power Consumption | 2.5W |
| Operating Temp | 0°C ~ 40°C (Ambient), -40°C ~ 85°C (Case) |
| Operating Humidity | 5% ~ 95%, non-condensing |

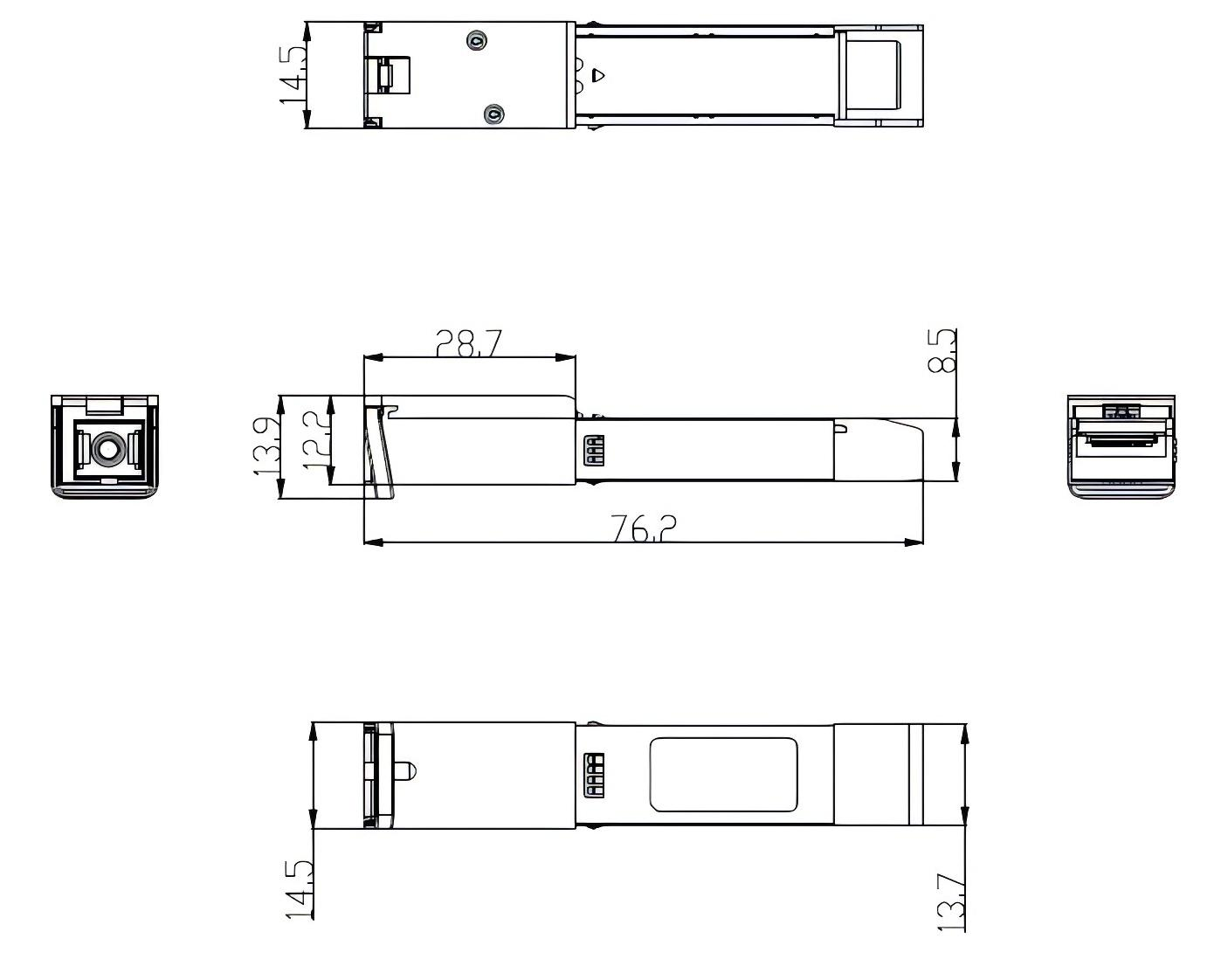

| Dimension | 76.2 × 13.7 × 12.2 mm |
| Installation | SFP+, hot pluggable |
| Compliance | ITU-T G.9807, SFF-8472, IEEE 802.3, RoHS 2.0 |
| Management | OMCI, Web GUI, CLI |
| Upgrade Method | OMCI, Web, TFTP, FTP; supports image rollback |
| Time Sync | 1PPS + TOD, 1588v2 |
| Special Features | Dying Gasp input & OLT reporting |
