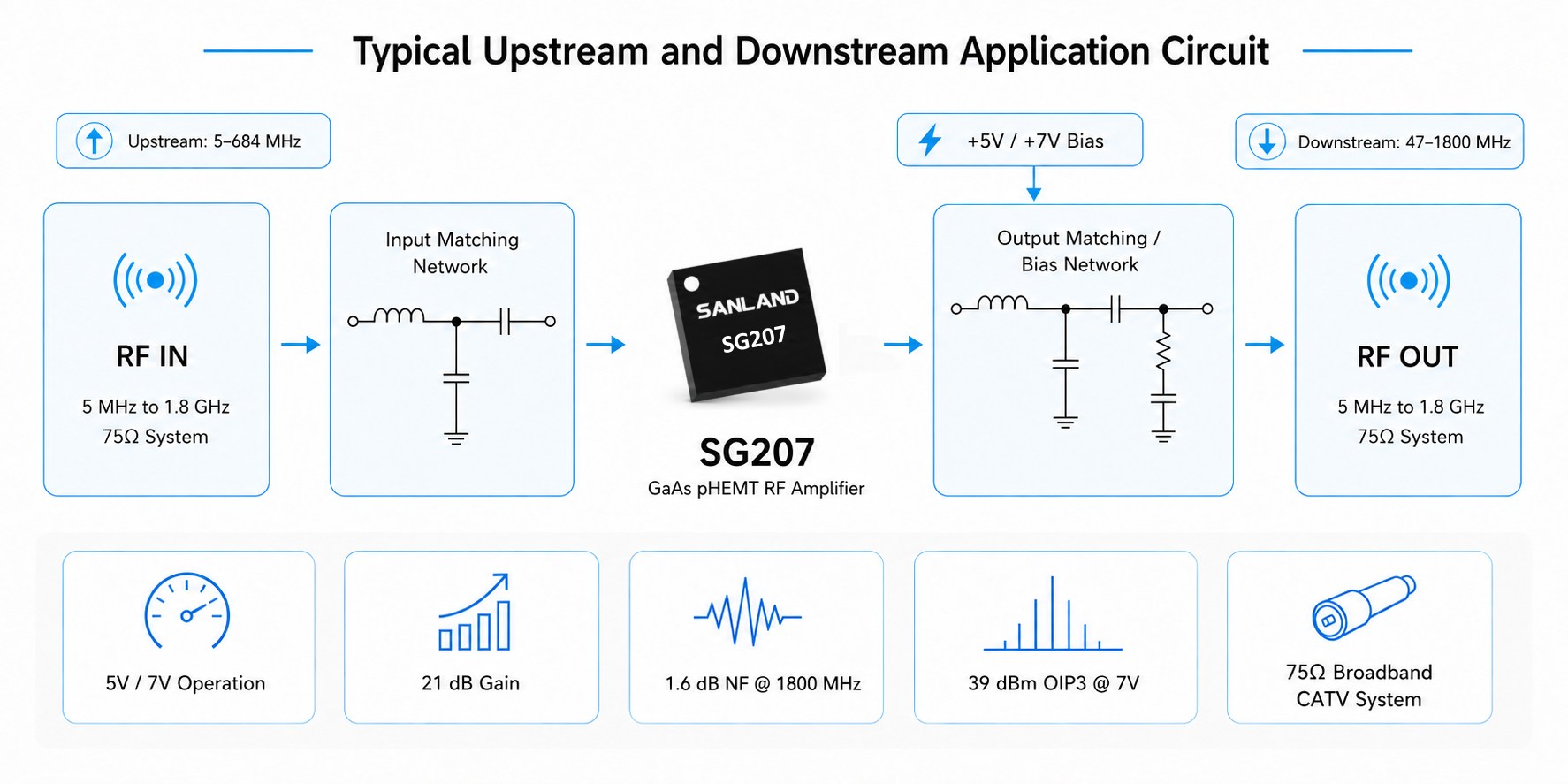

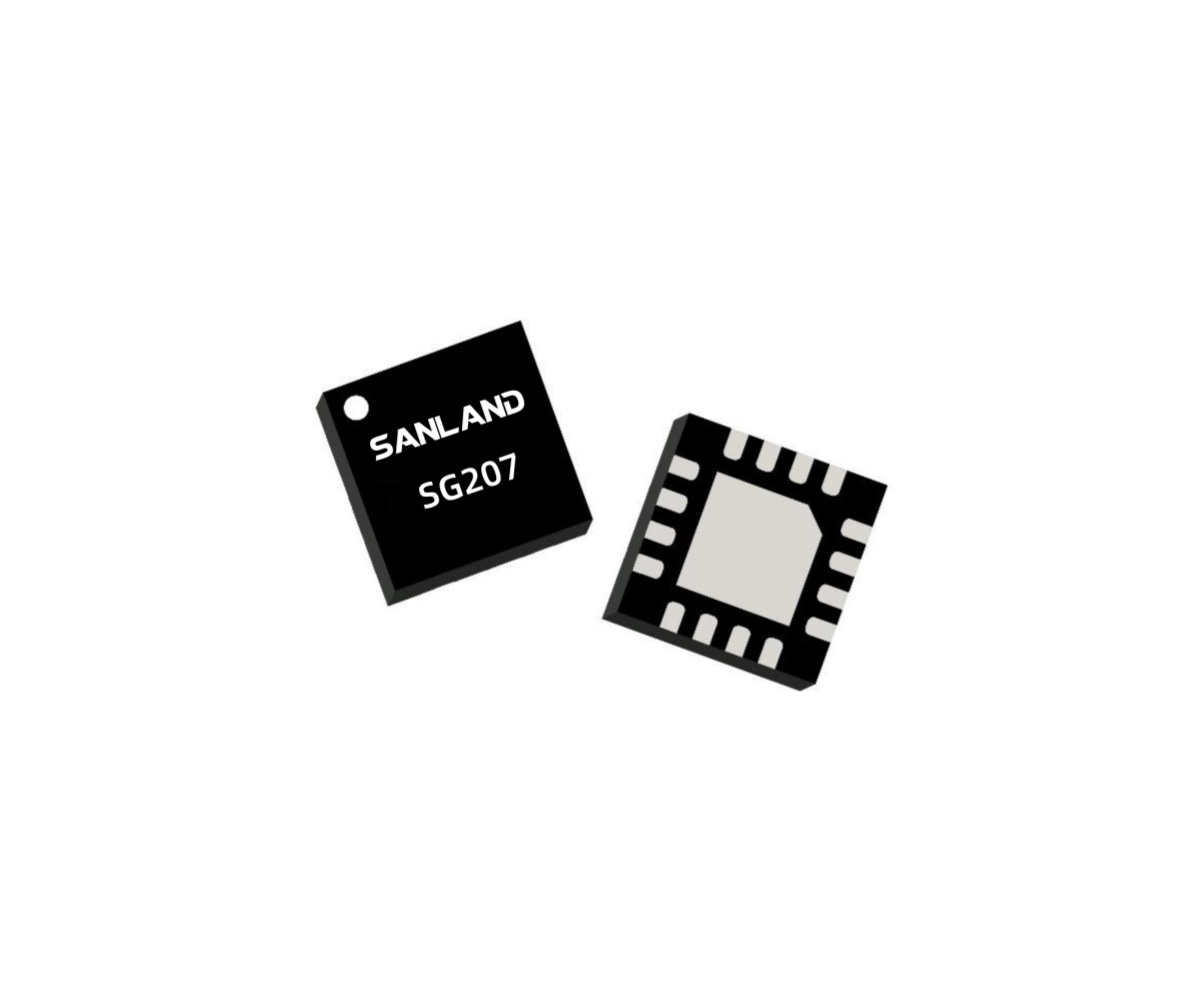

Sanland’s SG207 is a GaAs pHEMT single-ended MMIC RF amplifier IC designed for DOCSIS 3.1 and DOCSIS 4.0 upstream and downstream applications. The device supports upstream operation from 5 MHz to 684 MHz and downstream operation from 47 MHz to 1800 MHz, providing 21 dB typical gain, low noise figure, and high linearity in a compact 3 × 3 QFN package. Powered by a single 5V or 7V supply, SG207 is suitable for optical nodes, head-end CMTS equipment, FTTH GPON / GEPON, cable modems, home gateways, and single-ended gain block applications.
| 范围 | +5V 典型值 | +7V 典型值 |
| 频率 | 47–1800 MHz | 47–1800 MHz |
| 供电电流 | 71毫安 | 101毫安 |
| 获得 | 21 分贝 | 21.4 分贝 |
| 增益斜率 | 1 分贝 | 1 分贝 |
| 反向隔离 | 25 分贝 | 25 分贝 |
| 输入收益损失 | 18 分贝 | 20 分贝 |
| 输出收益损失 | 20 分贝 | 20 分贝 |
| 噪声系数 | 1.0 / 1.6 分贝 | 1.0 / 1.6 分贝 |
| OIP3 | 36 dBm | 39 分贝 |
| OP1dB | 20 dBm | 23 dBm |
| 热阻 | 57℃/W | 57℃/W |
| 范围 | +5V 典型值 | +7V 典型值 |
| 频率 | 5–700 MHz | 5–700 MHz |
| 供电电流 | 70毫安 | 100毫安 |
| 获得 | 21 分贝 | 21.3 分贝 |
| 增益斜率 | 0.2 分贝 | 0.2 分贝 |
| 反向隔离 | 23 分贝 | 23 分贝 |
| 输入收益损失 | 21 分贝 | 22 分贝 |
| 输出收益损失 | 20 分贝 | 19 分贝 |
| 噪声系数 | 0.9 / 1.0 分贝 | 0.9 / 1.2 分贝 |
| OIP3 | 35 dBm | 40 dBm |
| OP1dB | 20 dBm | 23 dBm |
| 热阻 | 57℃/W | 57℃/W |

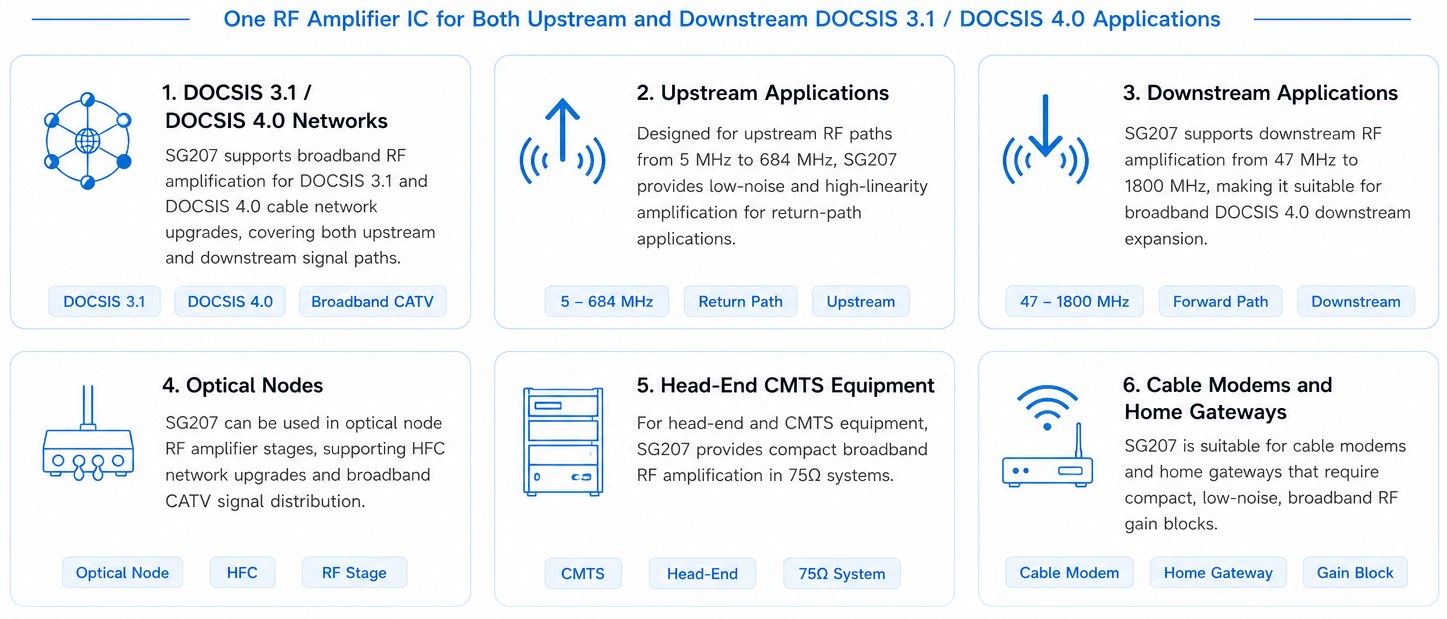

SG207 supports DOCSIS upstream and downstream broadband RF applications for cable network infrastructure and user equipment.
