关键性能
| ● Excellent Linearity |
| ● Superior Return Loss Performance |
| ● Extremely Low Distortion |
| ● Optimal Reliability |
| ● Low noise figure |
| ● Unconditionally Stable Under All Terminations |
| ● Low cost |
| ● Power gain @25dB |
| ● 160mA Max at 24VDC |

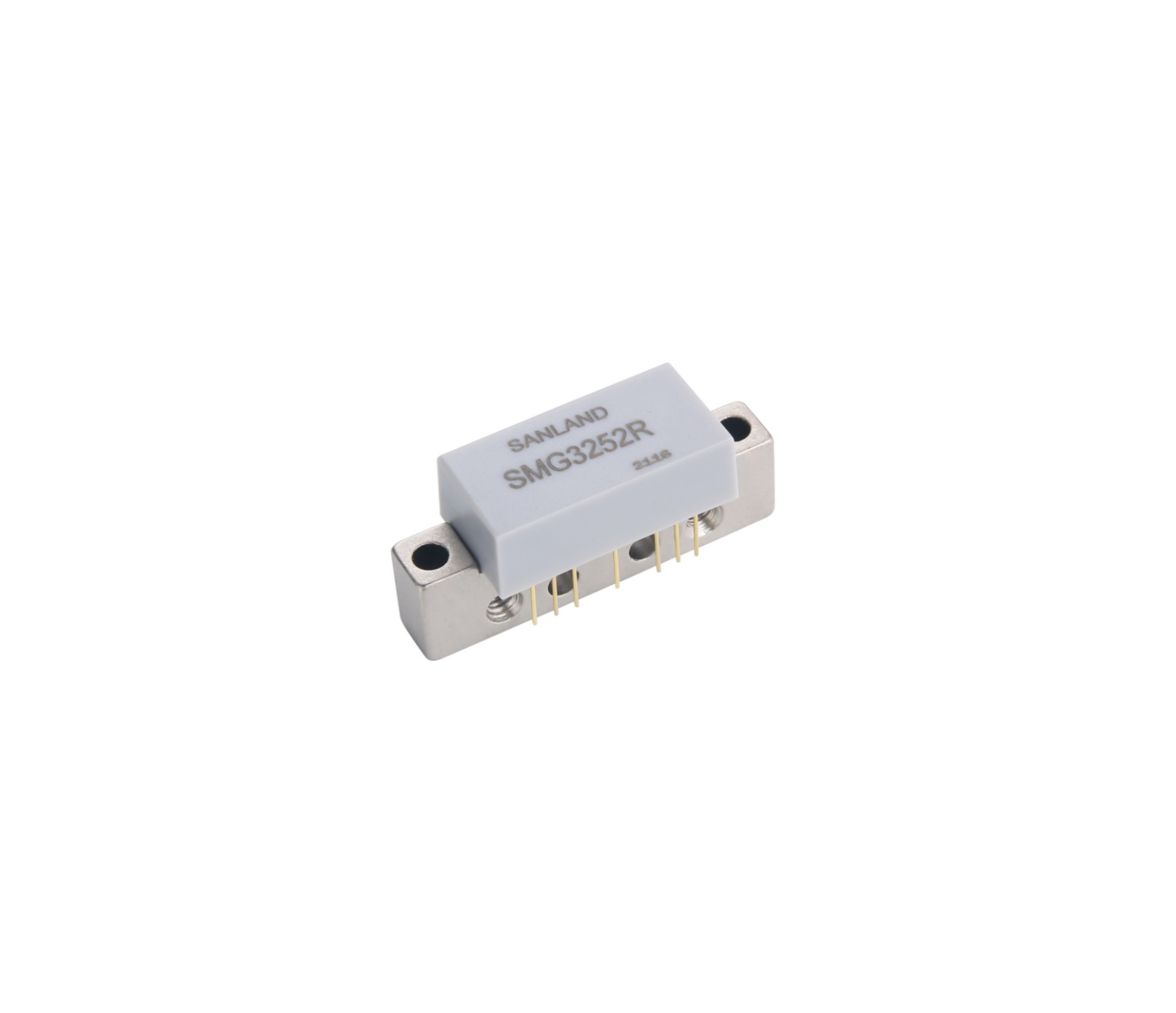

The SMG3252R is a hybrid reverse amplifier module engineered for broadband return-path applications. Operating across 5 to 300 MHz with a +24 V DC supply, it delivers excellent linearity, low distortion, and reliable long-term performance. The module integrates high-quality Si dies and is optimized for unconditionally stable operation under all termination conditions.
| 类型 | Downstream |
| 频率最小值(MHz) | 5 |
| 频率最大值(MHz) | 300 |
| S11(dB) | -20 |
| S22(dB) | -20 |
| 斜率(dB) | -0.2 ~ +0.5 |
| 增益典型值 (dB) | 25 |
| CTB（dBc） | -66 |
| Xmod（dBc） | -55 |
| CSO(dBc) | -65 |
| NF(dB) | 4.3 |
| 平坦度(dB) | ±0.5 |
| 工作电压(V) | 24 |
| 工作电流(mA) | 130-160 |
| Rohs | Yes |
| Lead Free | Yes |
| Halogen Free | Yes or No |
