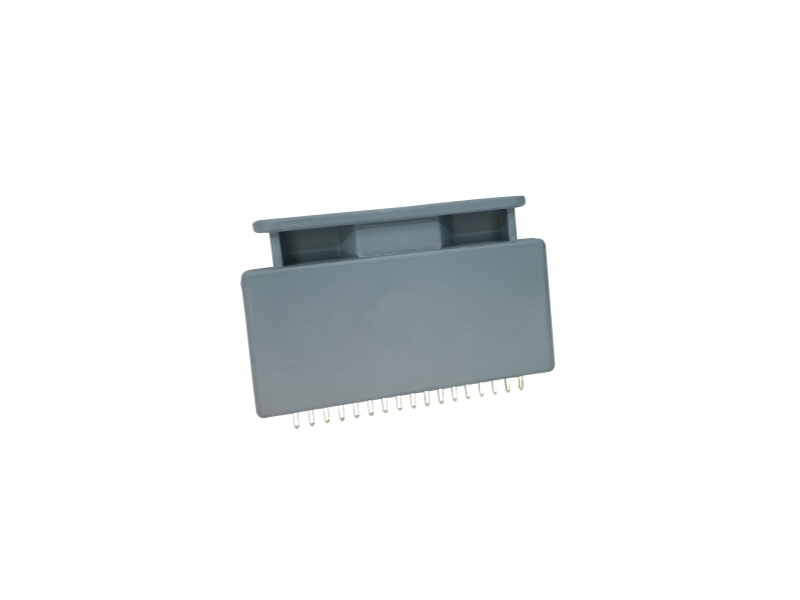

1.8G CATV Diplex Filter 5-204 / 258-1794 MHz

Long Lifespan CATV Diplex Filter

1.8G CATV Diplex Filter 5-204 / 258-1794 MHz

关键性能

●  75 Ohm
●  Plug in Design
●  RoHS compliant
●  Low Insertion Loss
●  Excellent Cross over Isolation
●  Small thickness

1.8G CATV Diplex Filter 5-204 / 258-1794 MHz

"Sanland" Diplex FilterUnit products, having low insertion loss and low reflection characteristics. To reduce the complexity of the calibration work, can simplify the circuit design.



Functional Schematic



Dimension(Unit: mm, Tolerance: ±0.2mm)

Parameter

Test conditions

Min.

Max.

Units

Frequency range

5 ~ 204MHz







258~ 1794MHz









Insertion loss

5 ~ 204MHz @204MHz

-

1.2

dB

258 ~ 1794MHz @258MHz

-

1.2

dB

258~ 1794MHz @1794MHz

-

1.4

dB

Crossover Isolation

HP-LP

205 ~ 257MHz

40

-

dB

Outof Band Rejection

High Pass

5-204MHz

50

-

dB



Outof Band Rejection



LowPass

258-600MHz

50

-

dB

601-1000MHz

45

-

dB

1001-1794MHz

40

-

dB



Return loss

5 ~ 204MHz

-

-20

dB

258 ~600MHz

-

-20

dB

601 ~ 1794MHz

-

-19

dB
