SG204 is a high-linearity GaAs pHEMT single-ended MMIC RF amplifier IC designed for broadband RF systems from 50 MHz to 1800 MHz. With 22.4 dB typical gain, 1.7 dB noise figure, and 38 dBm OIP3, SG204 is suitable for DOCSIS 4.0 amplifiers, optical nodes, FTTH networks, cable modems, home gateways, and single-ended gain block applications.

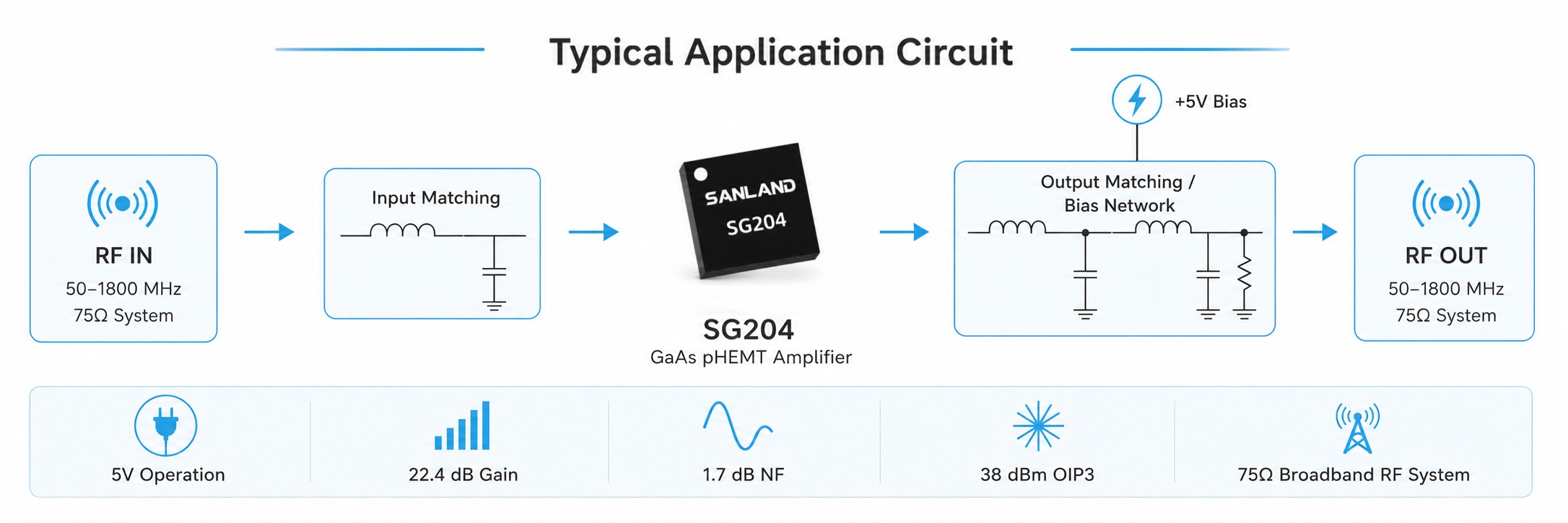

SG204 GaAs pHEMT RF amplifier typical application circuit for 50–1800 MHz broadband RF systems

Feature	Value
Frequency Range	50–1800 MHz
Gain	22.4 dB Typ.
Noise Figure	1.7 dB Typ.
OIP3	38 dBm Typ.
OP1dB	21 dBm Typ.
Supply Voltage	5 V
Supply Current	125 mA Typ.
Package	3 × 3 mm 16-pin QFN
Technology	GaAs pHEMT MMIC

SG204 provides high-linearity broadband RF amplification for DOCSIS 4.0 and 75Ω RF systems.

DOCSIS 4.0 Amplifiers
DOCSIS 4.0 Optical Nodes
DOCSIS 4.0 Remote PHY Devices
FTTH GPON and GEPON
DOCSIS 4.0 Cable Modem and Home Gateways
Single Ended Gain Block

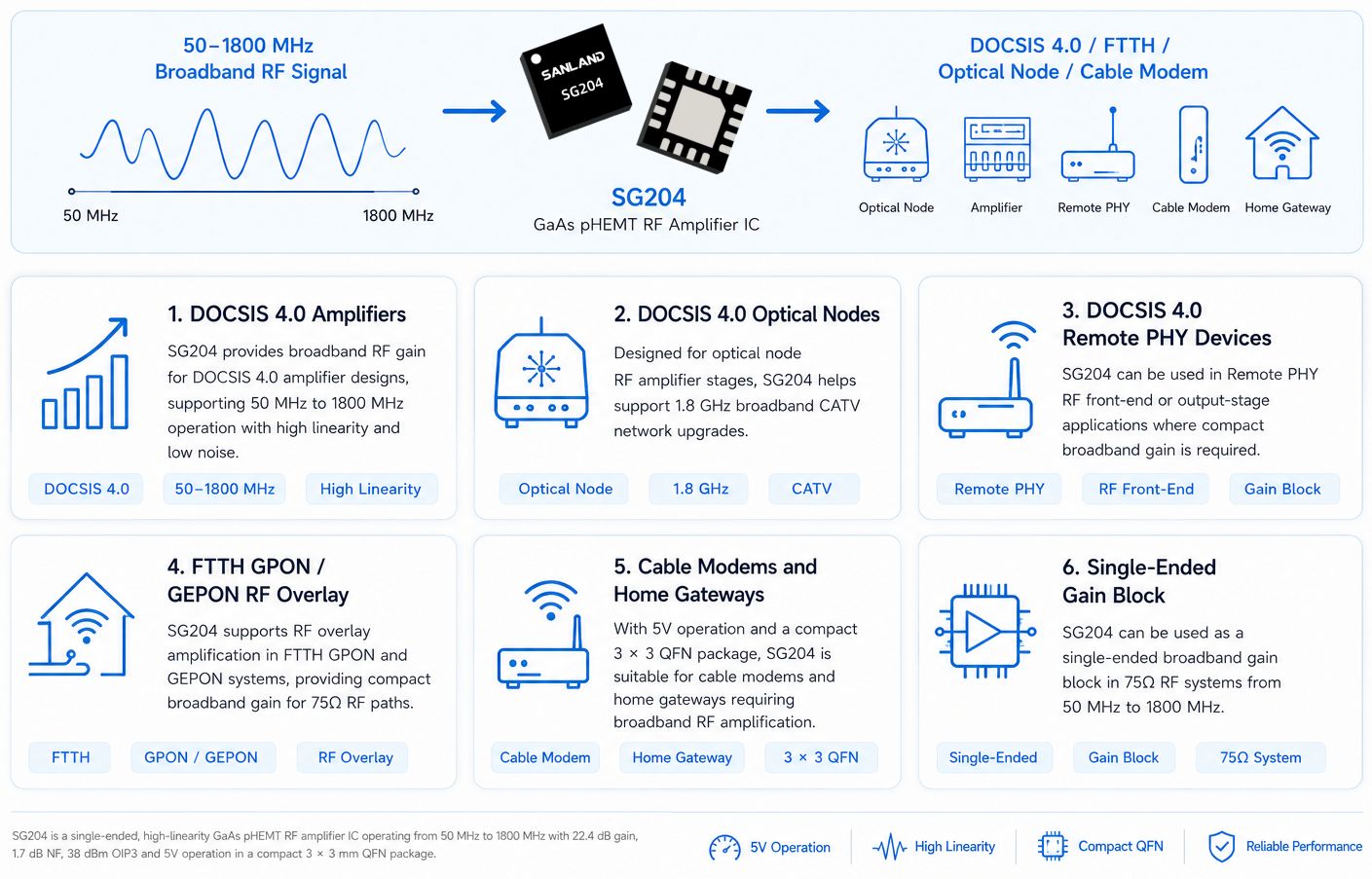

SG204 GaAs pHEMT RF amplifier applications for DOCSIS 4.0, FTTH, optical nodes, cable modems and 75Ω broadband RF systems
